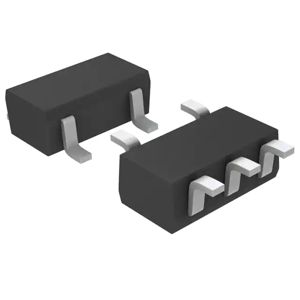

PIMC31F
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS 1NPN 1PNP 6TSOP
$0.42
Available to order
Reference Price (USD)
10,000+
$0.08700
30,000+
$0.07980
50,000+
$0.07680
100,000+
$0.07500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Nexperia USA Inc.'s PIMC31F represents the next generation of Pre-Biased Bipolar Transistor Arrays, combining efficiency with compact design. These surface-mount compatible components feature integrated bias networks that reduce part count while improving system reliability. Ideal applications encompass power management, sensor interfaces, and digital circuit amplification in medical equipment, robotics, and smart home systems. Notable advantages include consistent hFE matching, reduced board space requirements, and simplified inventory management. As a leading supplier of discrete semiconductors, Nexperia USA Inc. guarantees quality and performance. Get competitive quotes and lead times inquire about PIMC31F now!
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 1kOhms
- Resistor - Emitter Base (R2): 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 420mW
- Mounting Type: Surface Mount
- Package / Case: SC-74, SOT-457
- Supplier Device Package: 6-TSOP
