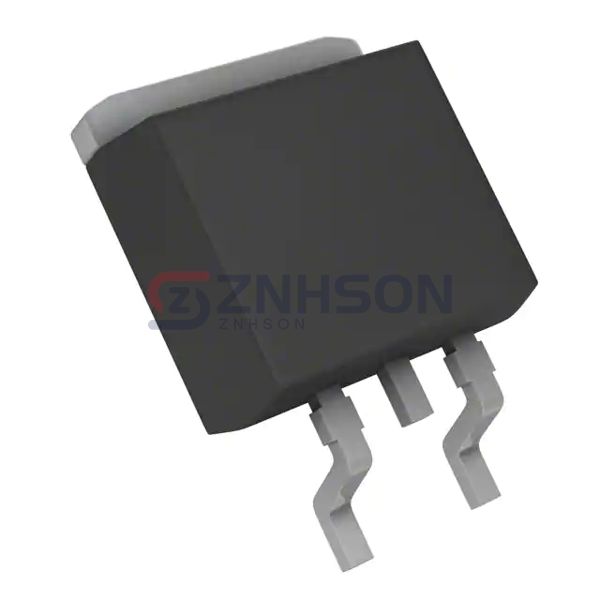

PJD13N10A_L2_00001
Panjit International Inc.
Panjit International Inc.
100V N-CHANNEL MOSFET
$0.54
Available to order
Reference Price (USD)
1+
$0.54000
500+
$0.5346
1000+
$0.5292
1500+
$0.5238
2000+
$0.5184
2500+
$0.513
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose PJD13N10A_L2_00001 by Panjit International Inc.. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with PJD13N10A_L2_00001 inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 2.9A (Ta), 13A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 115mOhm @ 6.5A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1413 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 41W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
