PRPC016DAAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 32POS 2.54MM
$0.79
Available to order
Reference Price (USD)
1+
$0.79000
10+
$0.74300
25+
$0.66880
50+
$0.59440
100+
$0.56970
250+
$0.52012
500+
$0.49536
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PRPC016DAAN-RC Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PEC11DFBN
Samtec Inc.
SHF-110-01-L-D-SM-TR
Molex
0022063121
Samtec Inc.
BBD-122-G-D
Sullins Connector Solutions
PRPC020DAAN-RC
Amphenol ICC (FCI)
76384-315LF
TE Connectivity AMP Connectors
2-1761608-5
Samtec Inc.

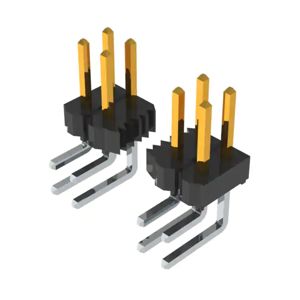

TSW-106-08-L-D-RA
Samtec Inc.

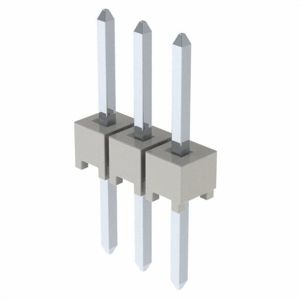

HTSW-103-08-T-S
