PS9308L2-E3-AX
Renesas Electronics America Inc
Renesas Electronics America Inc
OPTOISO 5KV 1CH GATE DRVR 6SDIP
$2.20
Available to order
Reference Price (USD)
2,000+
$1.68300
6,000+
$1.63680
10,000+
$1.58400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Renesas Electronics America Inc PS9308L2-E3-AX Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Not For New Designs
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 250ns, 250ns
- Pulse Width Distortion (Max): 100ns
- Rise / Fall Time (Typ): 50ns, 50ns
- Current - Output High, Low: 1.5A, 1.5A
- Current - Peak Output: 2A
- Voltage - Forward (Vf) (Typ): 1.56V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.268", 6.80mm Width)
- Supplier Device Package: 6-SDIP
- Approval Agency: CSA, SEMKO, UL
Related Products
Analog Devices Inc./Maxim Integrated
MAX22700EASA+
Broadcom Limited
HCPL-3180-300
onsemi
FOD3182S
Skyworks Solutions Inc.
SI8230AC-D-IS1
Skyworks Solutions Inc.

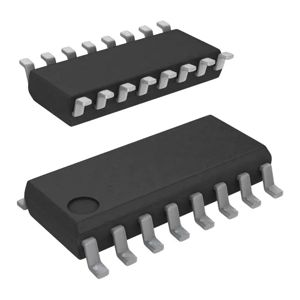

SI823H1AB-IS1R
Skyworks Solutions Inc.
SI823H1CB-IS1
Texas Instruments
UCC23313BDWY
Skyworks Solutions Inc.

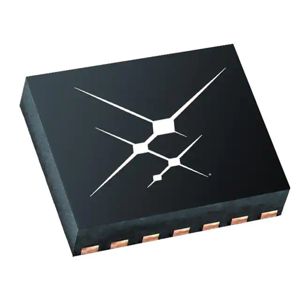

SI8275DAD-IM1
