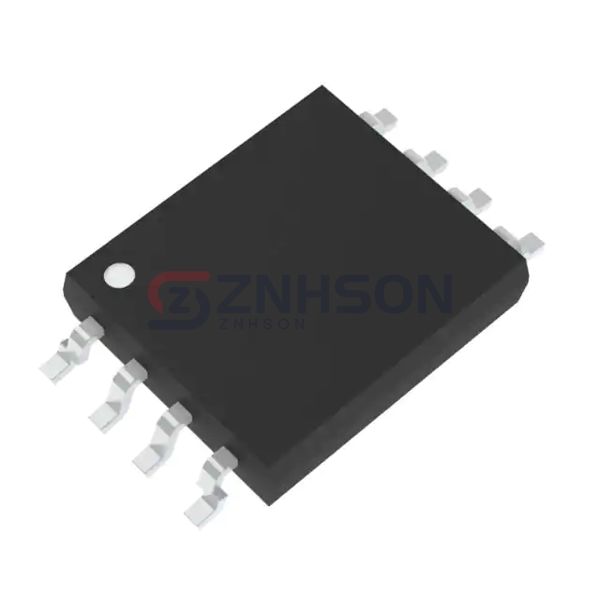

PS9332L-V-AX
Renesas Electronics America Inc
Renesas Electronics America Inc
SDIP
$10.14
Available to order
Reference Price (USD)
1+
$10.14000
500+
$10.0386
1000+
$9.9372
1500+
$9.8358
2000+
$9.7344
2500+
$9.633
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Renesas Electronics America Inc PS9332L-V-AX Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 50kV/µs
- Propagation Delay tpLH / tpHL (Max): 200ns, 200ns
- Pulse Width Distortion (Max): 75ns
- Rise / Fall Time (Typ): 17ns, 17ns
- Current - Output High, Low: 1.5A, 1.5A
- Current - Peak Output: 2A
- Voltage - Forward (Vf) (Typ): 1.56V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.268", 6.80mm Width)
- Supplier Device Package: 8-SOIC
- Approval Agency: CSA, UL, VDE
