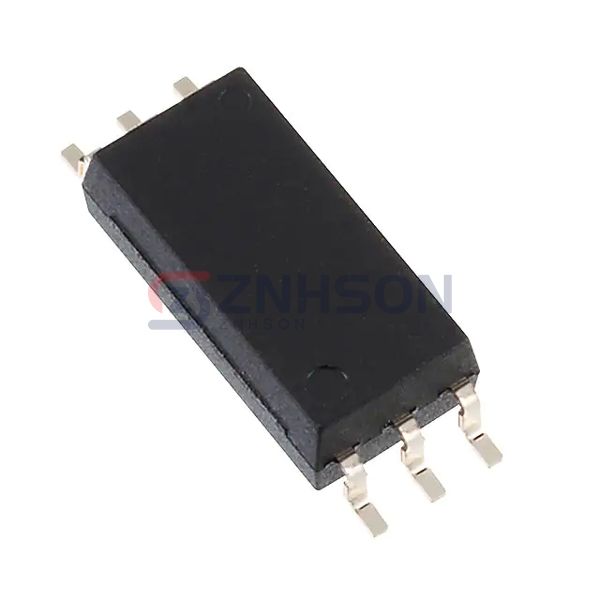

TLP5771(TP,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 5KV 1CH GATE DRIVER 6SO
$2.31
Available to order
Reference Price (USD)
1,500+
$0.98313
3,000+
$0.92950
7,500+
$0.89375
10,500+
$0.87588
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with Toshiba Semiconductor and Storage TLP5771(TP,E Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 150ns, 150ns
- Pulse Width Distortion (Max): 50ns
- Rise / Fall Time (Typ): 15ns, 8ns
- Current - Output High, Low: 1A, 1A
- Current - Peak Output: 1A
- Voltage - Forward (Vf) (Typ): 1.65V
- Current - DC Forward (If) (Max): 8 mA
- Voltage - Output Supply: 10V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
- Approval Agency: CQC, cUR, UR, VDE
