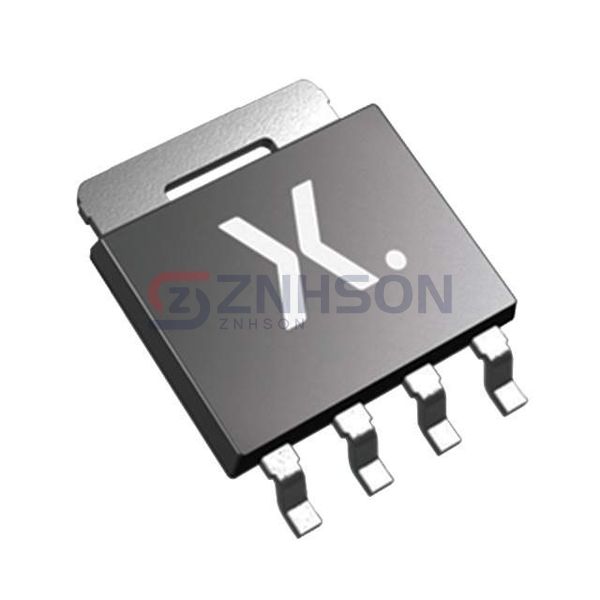

PSMN015-100YLX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 100V 69A LFPAK56
$1.65
Available to order
Reference Price (USD)
1,500+
$0.41497
3,000+
$0.38731
7,500+
$0.36794
10,500+
$0.35411
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance PSMN015-100YLX from Nexperia USA Inc., a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, PSMN015-100YLX delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 69A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 14.7mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 86.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6139 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 195W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
