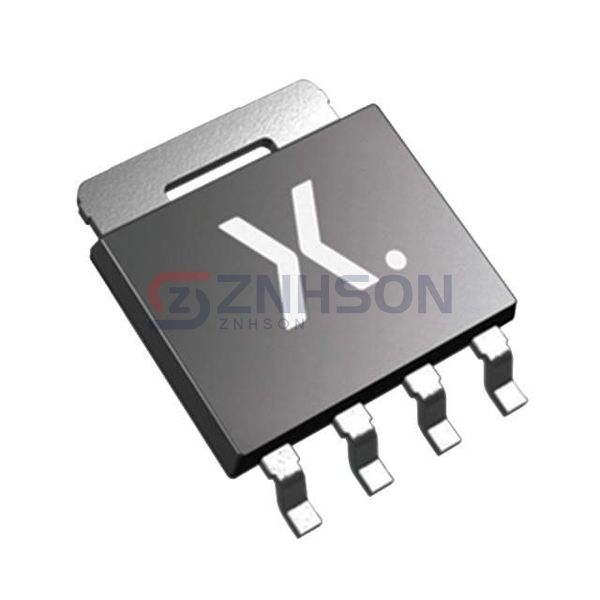

PSMN3R5-40YSDX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 40V 120A LFPAK56
$0.62
Available to order
Reference Price (USD)
1,500+
$0.44946
3,000+
$0.41950
7,500+
$0.39852
10,500+
$0.38354
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with PSMN3R5-40YSDX, a high-quality Transistors - FETs, MOSFETs - Single from Nexperia USA Inc.. This Discrete Semiconductor Products component is built for reliability, featuring enhanced thermal stability and fast response times. Perfect for automotive electronics, power tools, and IoT devices, PSMN3R5-40YSDX provides efficient power management solutions. Contact us today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.5mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3245 pF @ 20 V
- FET Feature: Schottky Diode (Body)
- Power Dissipation (Max): 115W (Ta)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
