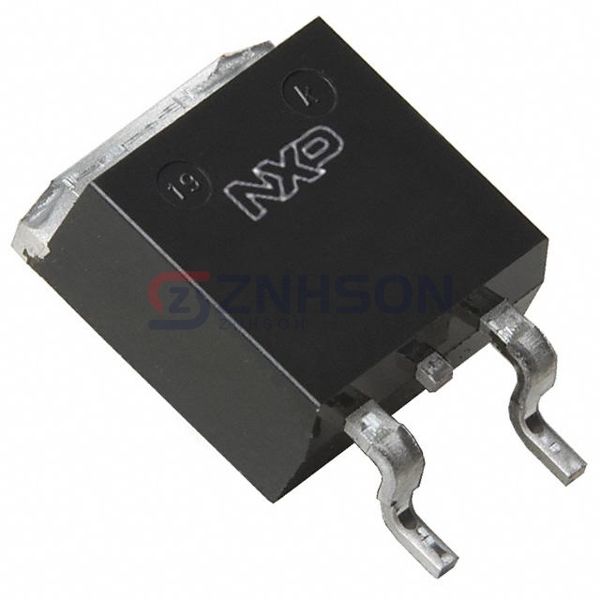

PSMN3R8-100BS,118
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 100V 120A D2PAK
$3.98
Available to order
Reference Price (USD)
800+
$1.77375
1,600+
$1.65550
2,400+
$1.57273
5,600+
$1.51360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover PSMN3R8-100BS,118, a versatile Transistors - FETs, MOSFETs - Single solution from Nexperia USA Inc., a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.9mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 170 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 9900 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 306W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
