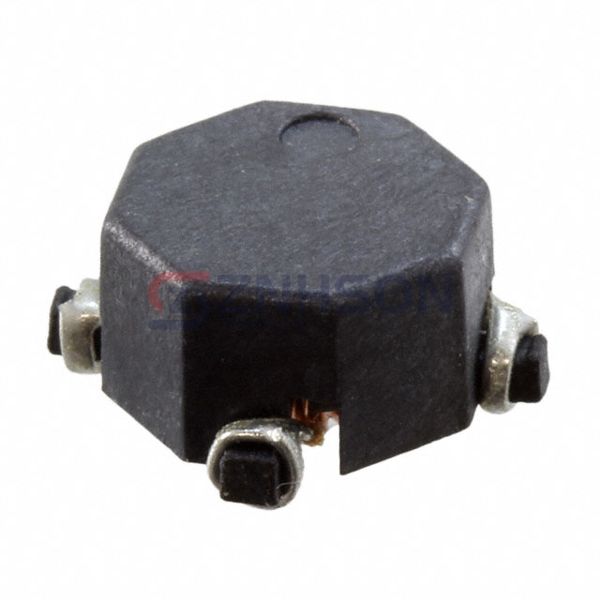

SCX114-101
Signal Transformer
Signal Transformer
INDUCT ARRAY 2 COIL 100UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with SCX114-101 Signal Transformer Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 100 µH
- Inductance - Connected In Series: 396.06 µH
- Tolerance: ±20%
- Current Rating - Parallel: 540 mA
- Current Rating - Series: 270 mA
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 557mOhm Max
- DC Resistance (DCR) - Series: 2.227Ohm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.461" L x 0.461" W (11.70mm x 11.70mm)
- Height: 0.217" (5.50mm)
