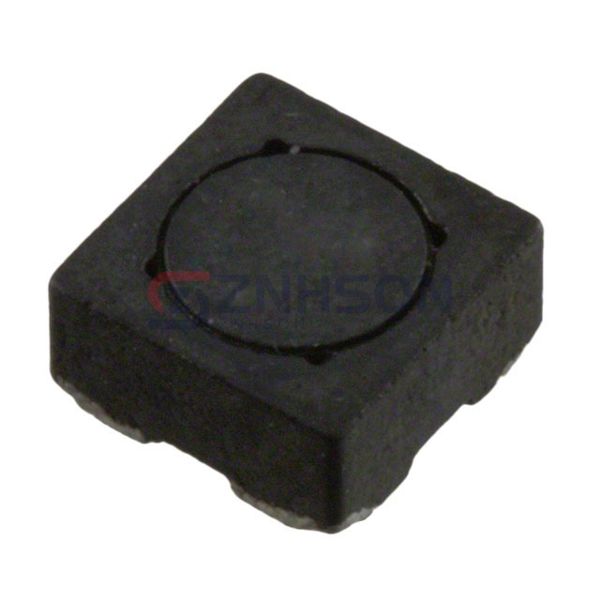

SDQ25-820-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 81.61UH SMD
$2.15
Available to order
Reference Price (USD)
1+
$2.14672
500+
$2.1252528
1000+
$2.1037856
1500+
$2.0823184
2000+
$2.0608512
2500+
$2.039384
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency with SDQ25-820-R Eaton - Electronics Division Inductors, Coils, and Chokes, tailored for Arrays and Signal Transformers. These components boast low core loss, high saturation current, and robust construction, ideal for aerospace, defense, and renewable energy applications. Trust in our reliable products to meet your technical requirements. Get in touch now for competitive pricing and fast delivery!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 81.61 µH
- Inductance - Connected In Series: 326.4 µH
- Tolerance: ±20%
- Current Rating - Parallel: 580 mA
- Current Rating - Series: 290 mA
- Current Saturation - Parallel: 446 mA
- Current Saturation - Series: 223 mA
- DC Resistance (DCR) - Parallel: 743.5mOhm
- DC Resistance (DCR) - Series: 2.97Ohm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.098" (2.50mm)
