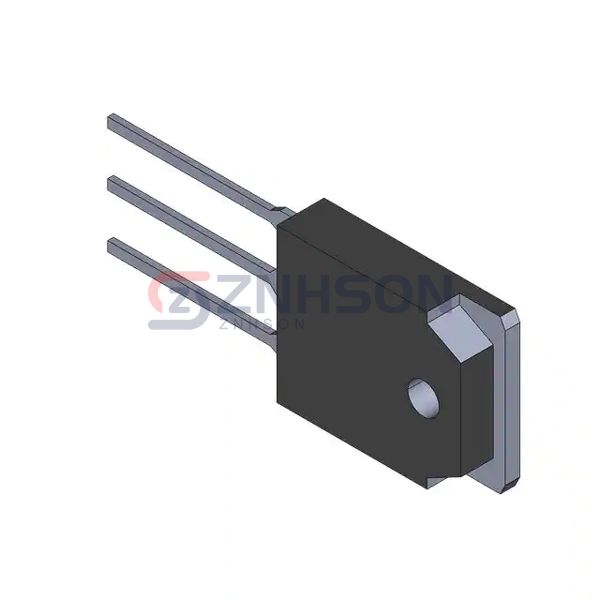

SGH15N120RUFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 24A, 1200V, N-CHANNEL
$2.88
Available to order
Reference Price (USD)
1+
$2.88000
500+
$2.8512
1000+
$2.8224
1500+
$2.7936
2000+
$2.7648
2500+
$2.736
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with SGH15N120RUFDTU Single IGBTs from Fairchild Semiconductor, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. Fairchild Semiconductor ensures SGH15N120RUFDTU meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 24 A
- Current - Collector Pulsed (Icm): 45 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 15A
- Power - Max: 180 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 108 nC
- Td (on/off) @ 25°C: 20ns/60ns
- Test Condition: 600V, 15A, 20Ohm, 15V
- Reverse Recovery Time (trr): 100 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
