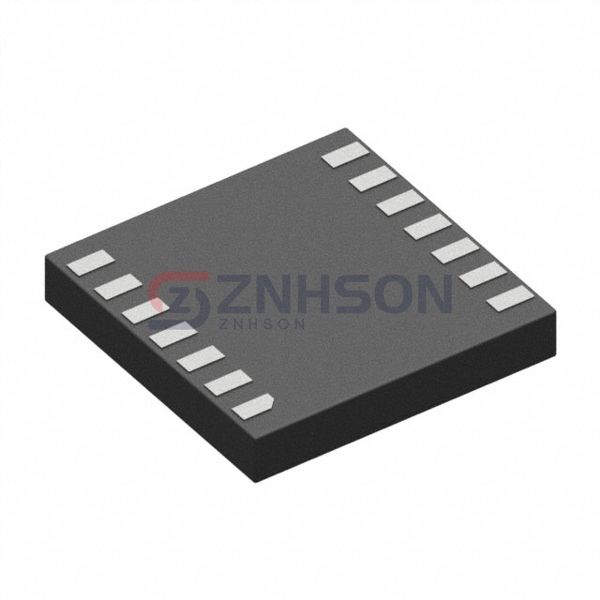

SI823H1BB-IM1R
Skyworks Solutions Inc.
Skyworks Solutions Inc.
5KV GATE DRIVER 14-QFN
$4.06
Available to order
Reference Price (USD)
1+
$4.06500
500+
$4.02435
1000+
$3.9837
1500+
$3.94305
2000+
$3.9024
2500+
$3.86175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Skyworks Solutions Inc. SI823H1BB-IM1R Gate Driver Isolators provide reliable and efficient isolation for advanced power electronics. With features like low jitter, high CMTI, and extended lifecycle, they are ideal for industrial robots, energy storage systems, and consumer electronics. Unlock superior performance get in touch for expert advice!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 125kV/µs
- Propagation Delay tpLH / tpHL (Max): 30ns, 30ns
- Pulse Width Distortion (Max): 5ns
- Rise / Fall Time (Typ): 12ns, 12ns (Max)
- Current - Output High, Low: 4A, 4A
- Current - Peak Output: 6A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 5.5V ~ 30V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 14-VDFN
- Supplier Device Package: 14-QFN (5x5)
- Approval Agency: CQC, CSA, UL, VDE
