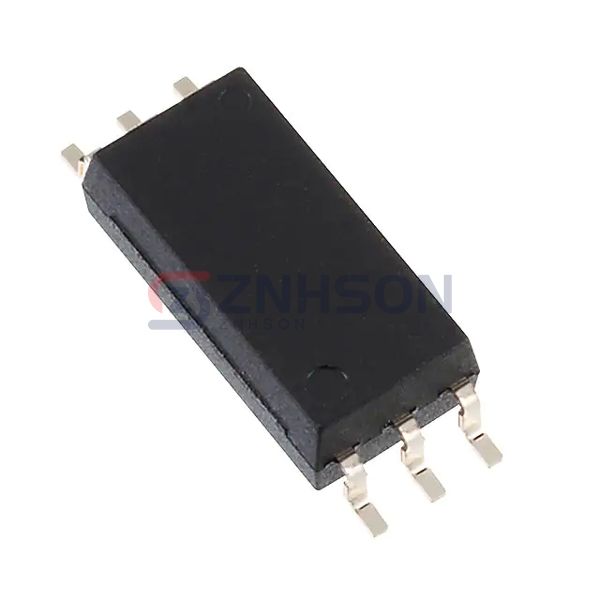

TLP5772(TP,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 5KV 1CH GATE DRIVER 6SO
$2.38
Available to order
Reference Price (USD)
1,500+
$1.01337
3,000+
$0.95810
7,500+
$0.92125
10,500+
$0.90282
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Toshiba Semiconductor and Storage TLP5772(TP,E Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 150ns, 150ns
- Pulse Width Distortion (Max): 50ns
- Rise / Fall Time (Typ): 15ns, 8ns
- Current - Output High, Low: 2.5A, 2.5A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.65V
- Current - DC Forward (If) (Max): 8 mA
- Voltage - Output Supply: 10V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
- Approval Agency: CQC, cUR, UR, VDE
