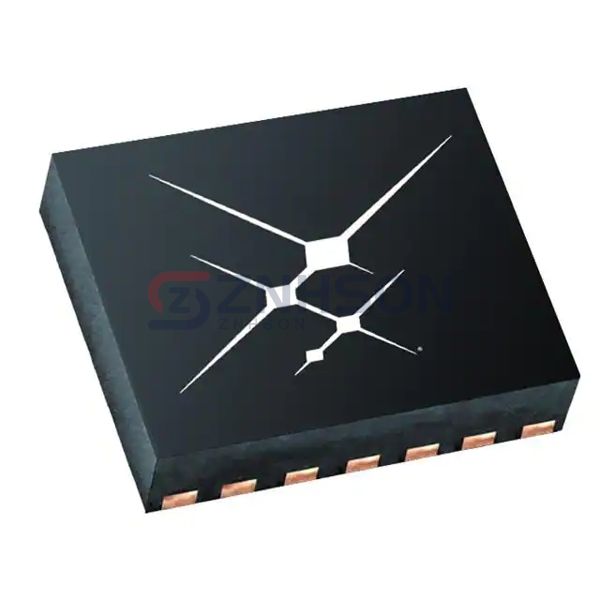

SI8274AB1-IM1
Skyworks Solutions Inc.
Skyworks Solutions Inc.
DGTL ISO 2.5KV GATE DRIVER 14LGA
$6.12
Available to order
Reference Price (USD)
Call+
$Call
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Skyworks Solutions Inc. SI8274AB1-IM1 Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 200kV/µs
- Propagation Delay tpLH / tpHL (Max): 75ns, 60ns
- Pulse Width Distortion (Max): 19ns
- Rise / Fall Time (Typ): 10.5ns, 13.3ns
- Current - Output High, Low: 1.8A, 4A
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.2V ~ 30V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 14-VDFN
- Supplier Device Package: 14-QFN (5x5)
- Approval Agency: CQC, CSA, UR, VDE
