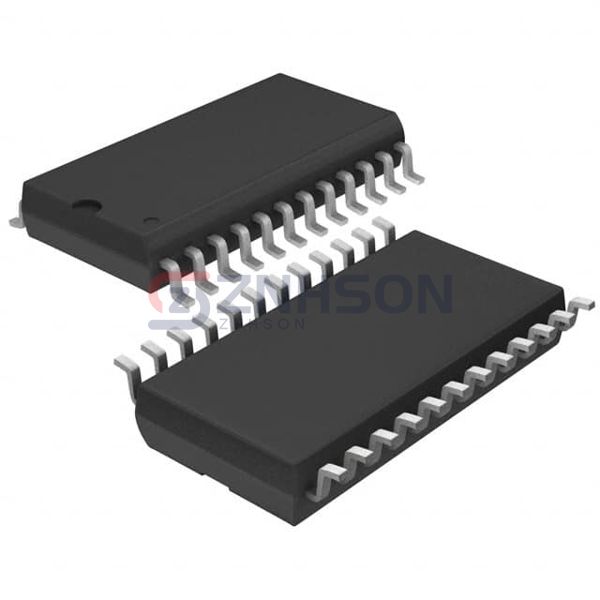

SI8284BC-ISR
Skyworks Solutions Inc.
Skyworks Solutions Inc.
DGTL ISO 3.75KV 1CH GATE DRVR
$8.78
Available to order
Reference Price (USD)
1+
$8.78000
500+
$8.6922
1000+
$8.6044
1500+
$8.5166
2000+
$8.4288
2500+
$8.341
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Skyworks Solutions Inc. SI8284BC-ISR Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Not For New Designs
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 50ns, 50ns
- Pulse Width Distortion (Max): 5ns
- Rise / Fall Time (Typ): 5.5ns, 8.5ns
- Current - Output High, Low: 2.5A, 3A
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 2.8V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 24-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 24-SOIC
- Approval Agency: CQC, CSA, UL, VDE
