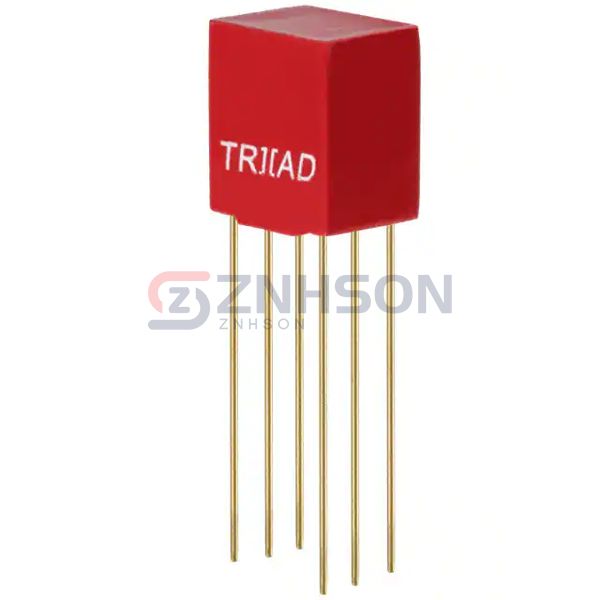

SP-29
Triad Magnetics
Triad Magnetics
TRANSF 10K CT/500 CT AUDIO
$18.41
Available to order
Reference Price (USD)
1+
$16.88000
10+
$12.86300
25+
$11.85840
50+
$11.45640
100+
$11.25540
250+
$10.85348
500+
$10.45148
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your audio experience with Triad Magnetics SP-29 Audio Transformers, offering unmatched performance and reliability. These transformers are widely used in broadcasting, recording, and live sound applications, providing clear and consistent audio signals. Choose Triad Magnetics for components that stand the test of time. Get in touch today to learn more and place your order.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 4.47:1
- Impedance - Primary (Ohms): 10kCT
- Impedance - Secondary (Ohms): 500CT
- DC Resistance (DCR) - Primary: 1.05kOhm
- DC Resistance (DCR) - Secondary: 80Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
