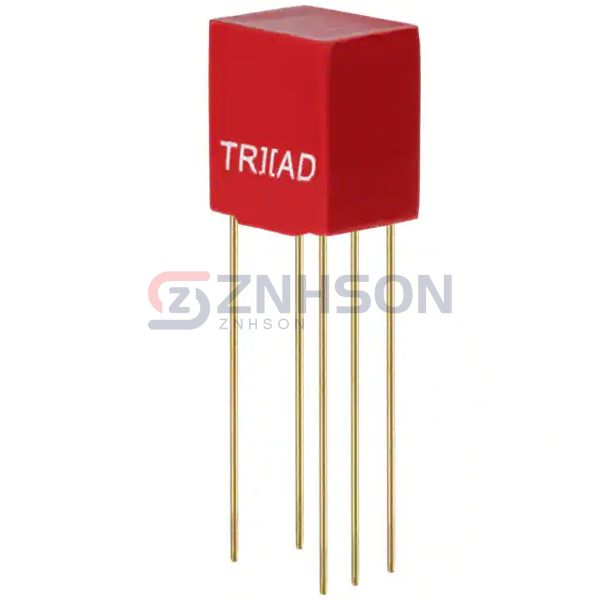

SP-42
Triad Magnetics
Triad Magnetics
TRANSER 150 CT/ 12 OHM AUDIO
$17.39
Available to order
Reference Price (USD)
1+
$16.10000
10+
$12.26500
25+
$11.30720
50+
$10.92400
100+
$10.73230
250+
$10.34896
500+
$9.96568
1,000+
$9.58238
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your audio experience with Triad Magnetics SP-42 Audio Transformers, offering unmatched performance and reliability. These transformers are widely used in broadcasting, recording, and live sound applications, providing clear and consistent audio signals. Choose Triad Magnetics for components that stand the test of time. Get in touch today to learn more and place your order.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 3.54:1
- Impedance - Primary (Ohms): 150CT
- Impedance - Secondary (Ohms): 12
- DC Resistance (DCR) - Primary: 18Ohm
- DC Resistance (DCR) - Secondary: 2.7Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
