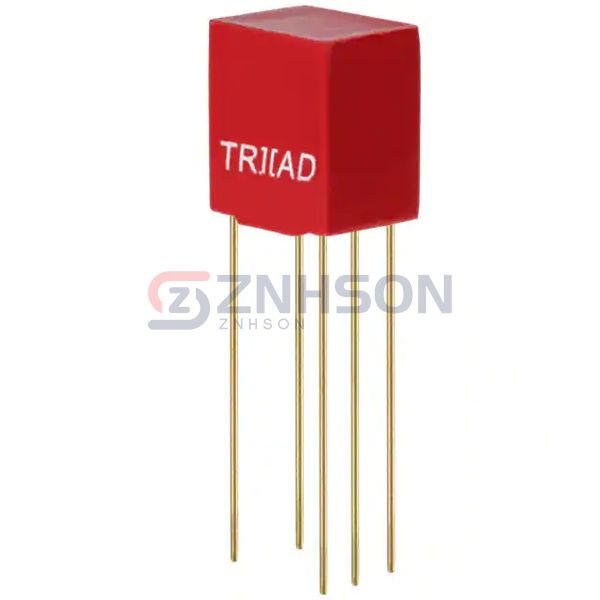

SP-42-B
Triad Magnetics
Triad Magnetics
TRANSER 150 CT/ 12 OHM AUDIO
$11.48
Available to order
Reference Price (USD)
672+
$9.94345
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Triad Magnetics SP-42-B Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Triad Magnetics for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 3.54:1
- Impedance - Primary (Ohms): 150CT
- Impedance - Secondary (Ohms): 12
- DC Resistance (DCR) - Primary: 18Ohm
- DC Resistance (DCR) - Secondary: 2.7Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
