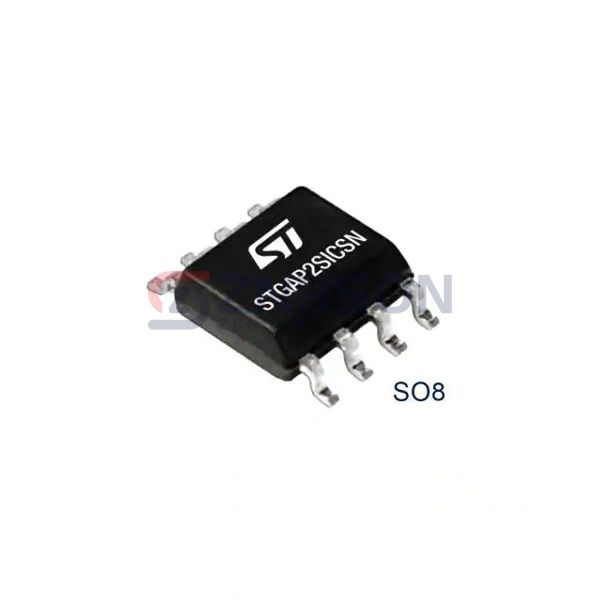

STGAP2SICSNTR
STMicroelectronics
STMicroelectronics
GALVANICALLY ISOLATED 4 A SINGLE
$3.41
Available to order
Reference Price (USD)
1+
$3.41000
500+
$3.3759
1000+
$3.3418
1500+
$3.3077
2000+
$3.2736
2500+
$3.2395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with STMicroelectronics STGAP2SICSNTR Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 4000Vrms
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 90ns, 90ns
- Pulse Width Distortion (Max): 20ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Current - Output High, Low: 4A, 4A
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 16.4V ~ 26V
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
- Approval Agency: UL
