STGWA40H120DF2
STMicroelectronics
STMicroelectronics
TRENCH GATE IGBT TO247 PKG
$11.29
Available to order
Reference Price (USD)
1+
$10.25000
30+
$8.93667
120+
$7.85508
510+
$6.93376
1,020+
$6.13262
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance STGWA40H120DF2 Single IGBTs from STMicroelectronics, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, STGWA40H120DF2 ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 40A
- Power - Max: 468 W
- Switching Energy: 1mJ (on), 1.32mJ (off)
- Input Type: Standard
- Gate Charge: 158 nC
- Td (on/off) @ 25°C: 18ns/152ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 488 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
STMicroelectronics
STGW75H65DFB2-4
IXYS

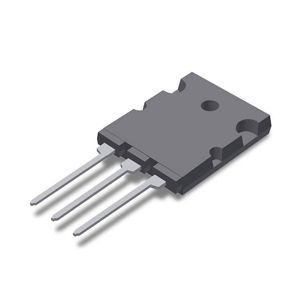

IXYK120N120C3
Infineon Technologies
IKY75N120CS6XKSA1
IXYS
IXGH16N170A
Renesas Electronics America Inc
RJH60A83RDPE-00#J3
Microchip Technology
APT45GP120BG
onsemi
MGW12N120D
onsemi
AFGHL75T65SQDC
IXYS

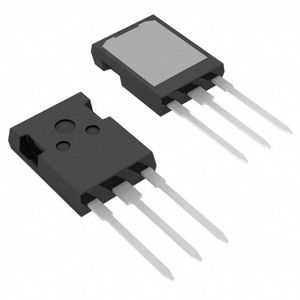

IXGX320N60B3
