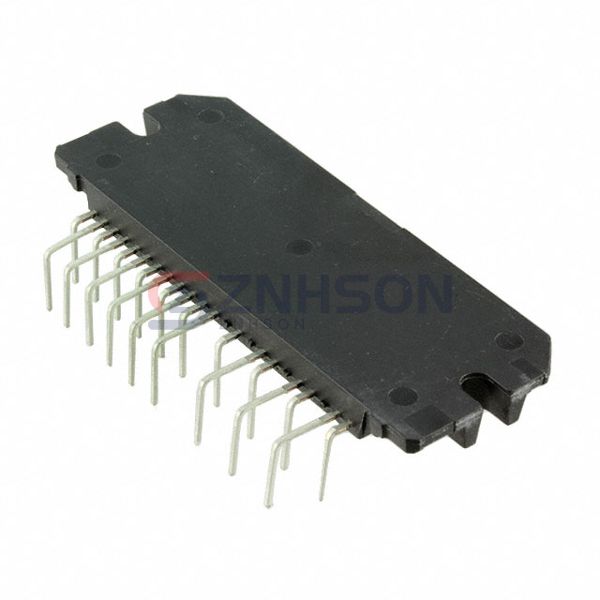

STK541UC60C-E
onsemi
onsemi
MODULE IPM INVERTER 3PH 23SIP
$0.00
Available to order
Reference Price (USD)
32+
$11.64000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The onsemi STK541UC60C-E series represents the pinnacle of bridge driver technology for professional power electronics. These PMICs feature advanced PWM interface compatibility, programmable current limiting, and real-time status monitoring for system diagnostics. Perfect for high-power audio systems, automated test equipment, and precision servo controls, they deliver clean switching transitions with minimal ringing. The innovative package design enhances thermal dissipation while reducing PCB footprint. Contact our technical sales team for application notes and design-in assistance with these superior bridge drivers.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge (3)
- Applications: AC Motors
- Interface: Logic
- Load Type: Inductive
- Technology: IGBT
- Rds On (Typ): -
- Current - Output / Channel: 10A
- Current - Peak Output: 20A
- Voltage - Supply: 12.5V ~ 17.5V
- Voltage - Load: 450V (Max)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Status Flag
- Fault Protection: Current Limiting, UVLO
- Mounting Type: Through Hole
- Package / Case: 23-SIP, 19 Leads, Formed Leads
- Supplier Device Package: 23-SIP
Related Products
onsemi

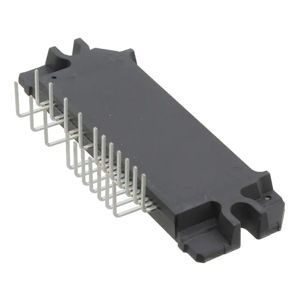

STK554U362A-E
Infineon Technologies

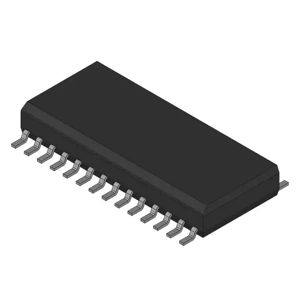

BTS7710G
Rohm Semiconductor

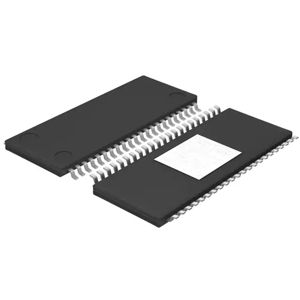

BD7998EFS-E2
onsemi

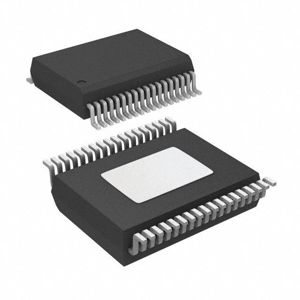

NCV7608DQR2G
