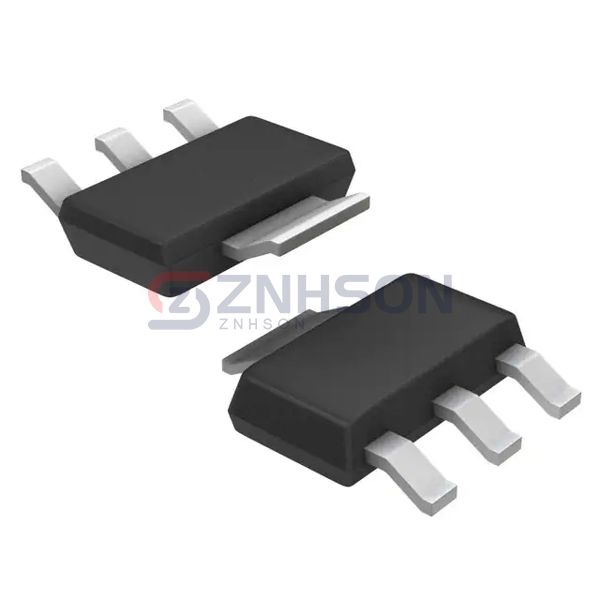

STN4NF20L
STMicroelectronics
STMicroelectronics
MOSFET N-CH 200V 1A SOT-223
$0.87
Available to order
Reference Price (USD)
4,000+
$0.28236
8,000+
$0.26597
12,000+
$0.24958
28,000+
$0.23810
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with STN4NF20L, a premium Transistors - FETs, MOSFETs - Single from STMicroelectronics. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust STN4NF20L for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 200 V
- Current - Continuous Drain (Id) @ 25°C: 1A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 1.5Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.9 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 150 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.3W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-223
- Package / Case: TO-261-4, TO-261AA
