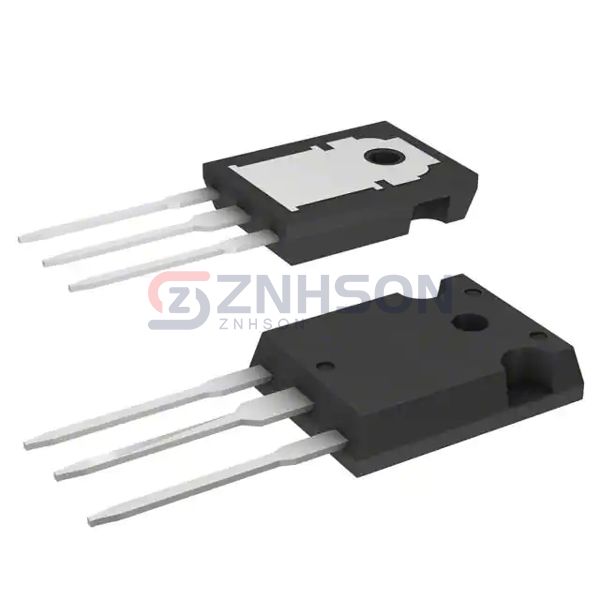

STW9N80K5
STMicroelectronics
STMicroelectronics
MOSFET N-CHANNEL 800V 7A TO247
$3.37
Available to order
Reference Price (USD)
1+
$3.14000
30+
$2.53000
120+
$2.27700
510+
$1.77100
1,020+
$1.46740
2,520+
$1.36620
5,010+
$1.31560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with STW9N80K5 by STMicroelectronics, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, STW9N80K5 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 900mOhm @ 3.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 110W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
Related Products
Sanyo
NTD4906NT4H
IXYS
IXTY1N80P
IXYS
IXFY26N30X3
Diodes Incorporated
DMN10H170SVTQ-7
Taiwan Semiconductor Corporation
TSM052NB03CR RLG
Vishay Siliconix
SUG80050E-GE3
Nexperia USA Inc.

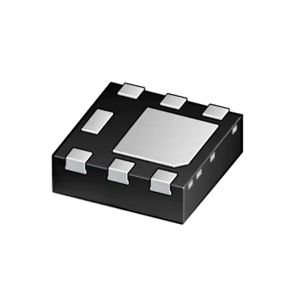

PMPB14XNX
onsemi

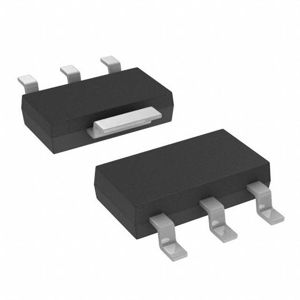

FQT2P25TF
onsemi

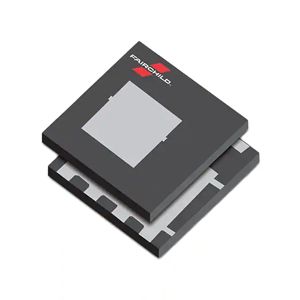

FDMC8010DC
