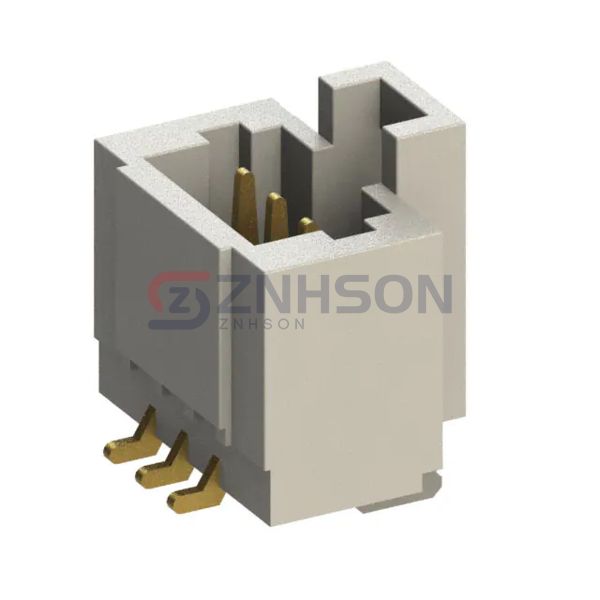

T1M-03-F-SV-L
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 3POS 1MM
$3.23
Available to order
Reference Price (USD)
1+
$2.41000
10+
$2.18300
25+
$2.04920
50+
$1.96020
100+
$1.87110
250+
$1.69292
500+
$1.55926
1,000+
$1.33650
2,500+
$1.24740
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The T1M-03-F-SV-L Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.217" (5.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3.3A per Contact
- Voltage Rating: 250VAC, 353VDC
