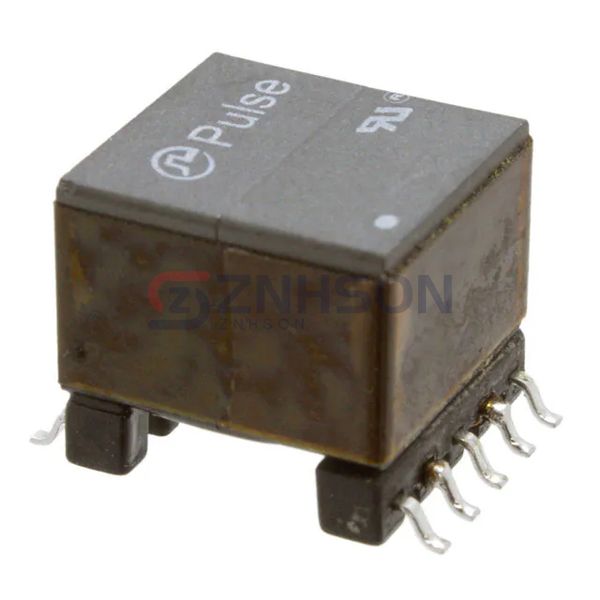

T6003NLT
Pulse Electronics Network
Pulse Electronics Network
TRANSFORMER AUDIO 1:1 SMD
$7.60
Available to order
Reference Price (USD)
1+
$7.60000
500+
$7.524
1000+
$7.448
1500+
$7.372
2000+
$7.296
2500+
$7.22
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Pulse Electronics Network T6003NLT Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Pulse Electronics Network for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Last Time Buy
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 55Ohm
- DC Resistance (DCR) - Secondary: 70Ohm
- Transformer Type: General Purpose
- Frequency Range: -
- Frequency Response: -
- Voltage - Isolation: 1500Vrms
- Insertion Loss: 1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz
- Return Loss: 20dB @ 200Hz, 1dB @ 1kHz, 25dB @ 10kHz
- Power Level: -
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.530" L x 0.516" W (13.46mm x 13.11mm)
- Height - Seated (Max): 0.485" (12.32mm)
- Termination Style: Gull Wing
