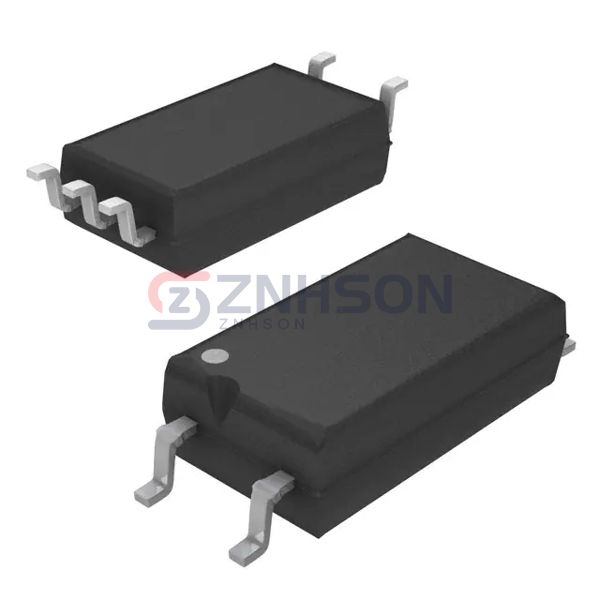

TCLT1101
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE SO6L
$0.22
Available to order
Reference Price (USD)
3,000+
$0.21840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Semiconductor Opto Division's TCLT1101 Optoisolators - Transistor, Photovoltaic Output are engineered for precision and performance in critical applications. These isolators are widely used in medical devices, test equipment, and telecommunications, offering low power consumption and high isolation voltage. Trust Vishay Semiconductor Opto Division for components that meet the highest industry standards. Don't hesitate reach out now for pricing and availability!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 40% @ 10mA
- Current Transfer Ratio (Max): 80% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
