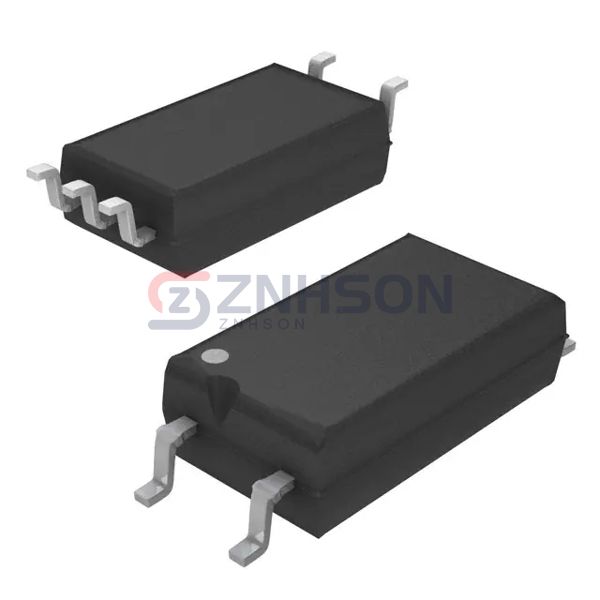

TCLT1103
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE 6SOP
$0.73
Available to order
Reference Price (USD)
3,000+
$0.22400
6,000+
$0.21600
15,000+
$0.21280
30,000+
$0.20800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Semiconductor Opto Division's TCLT1103 Optoisolators - Transistor, Photovoltaic Output are engineered for precision and performance in critical applications. These isolators are widely used in medical devices, test equipment, and telecommunications, offering low power consumption and high isolation voltage. Trust Vishay Semiconductor Opto Division for components that meet the highest industry standards. Don't hesitate reach out now for pricing and availability!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 100% @ 10mA
- Current Transfer Ratio (Max): 200% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
Related Products
onsemi
MCT61SD
Toshiba Semiconductor and Storage
TLP290(GB,SE
Broadcom Limited

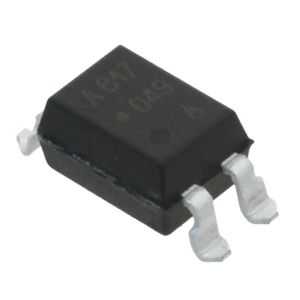

HCPL-817-50CE
Vishay Semiconductor Opto Division

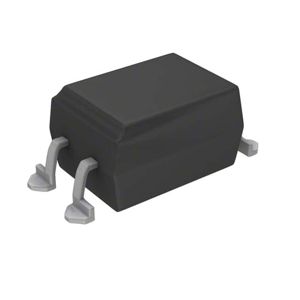

SFH6186-2
Vishay Semiconductor Opto Division
SFH6326-X009T
Broadcom Limited
ACPL-K43T-560E
onsemi

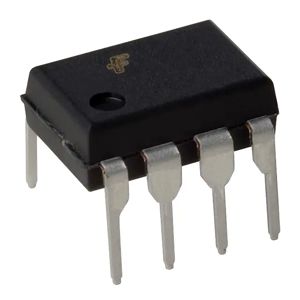

MCT6
Renesas Electronics America Inc
PS2561A-1-V-A
Broadcom Limited

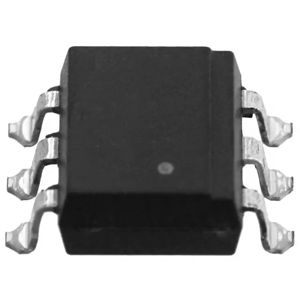

4N46-560E
