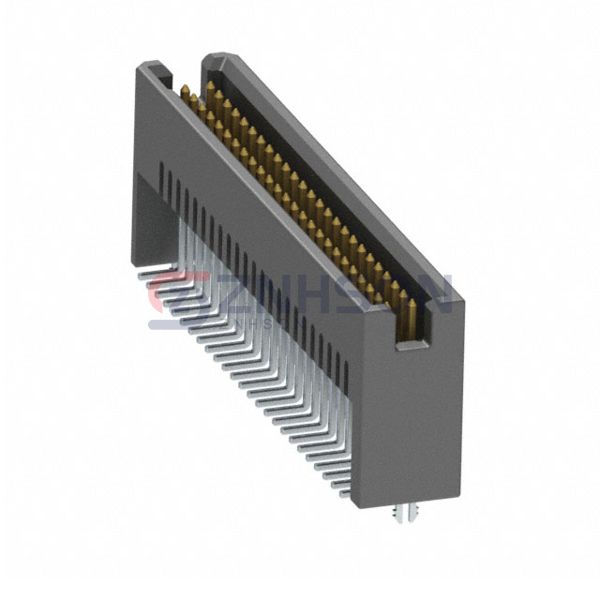

TFM-125-32-S-D-LC-P-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 50POS 1.27MM
$12.19
Available to order
Reference Price (USD)
125+
$8.95904
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TFM-125-32-S-D-LC-P-TR Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.139" (3.53mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.435" (11.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
Related Products
Samtec Inc.
TSM-108-01-LM-SH-A
Harwin Inc.
M20-9982545
TE Connectivity AMP Connectors
1-499206-1
Samtec Inc.
TSW-122-08-T-S
Preci-Dip
350-80-103-01-609101
Würth Elektronik
61302211021
Hirose Electric Co Ltd
DF51A-30DP-2DS(20)
Preci-Dip

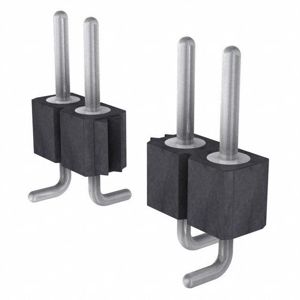

800-80-059-30-001101
Harwin Inc.

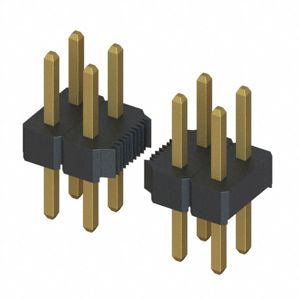

M22-2021405
