TK72E12N1,S1X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage

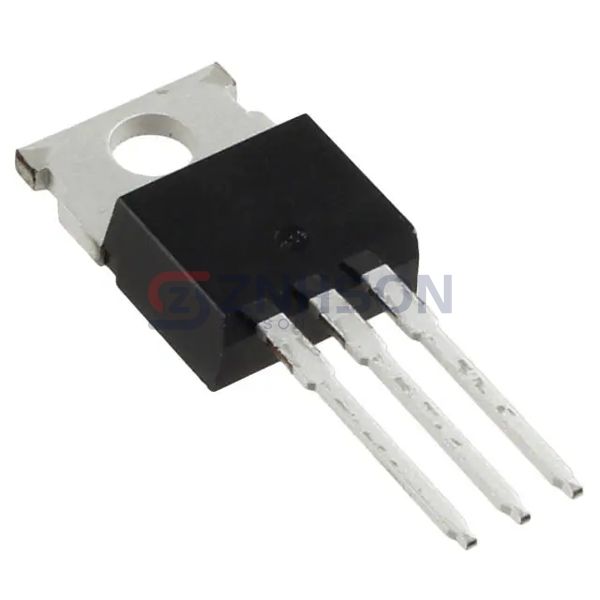

MOSFET N CH 120V 72A TO-220
$2.05
Available to order
Reference Price (USD)
50+
$1.86000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover TK72E12N1,S1X, a versatile Transistors - FETs, MOSFETs - Single solution from Toshiba Semiconductor and Storage, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 120 V
- Current - Continuous Drain (Id) @ 25°C: 72A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.4mOhm @ 36A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 130 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 8100 pF @ 60 V
- FET Feature: -
- Power Dissipation (Max): 255W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
