TSM-122-02-S-SH-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 22POS 2.54MM
$8.62
Available to order
Reference Price (USD)
1+
$5.53000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with TSM-122-02-S-SH-P Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.120" (3.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
1722861104
TE Connectivity AMP Connectors
3-644486-1
Samtec Inc.

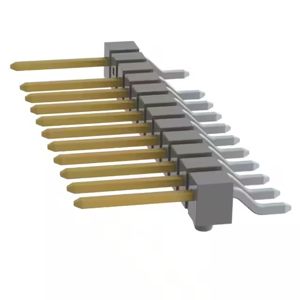

TSM-112-02-L-SH-A-011-P-TR
Samtec Inc.

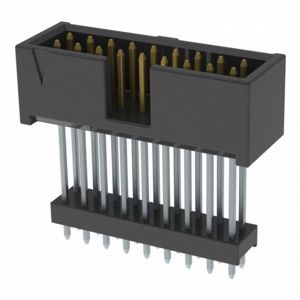

ZSS-109-04-S-D-840
Adam Tech

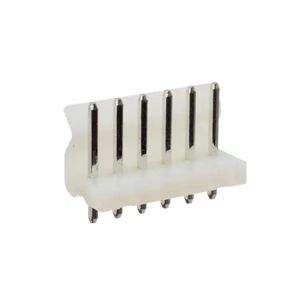

LHB-06-SA1
Samtec Inc.

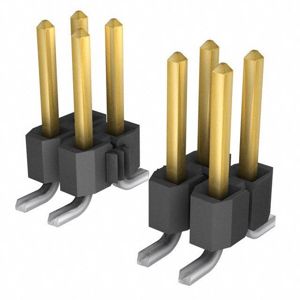

TSM-117-01-S-DV
Hirose Electric Co Ltd

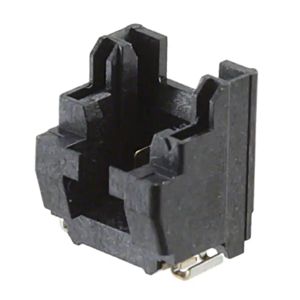

DF50A-3P-1V(51)
Samtec Inc.

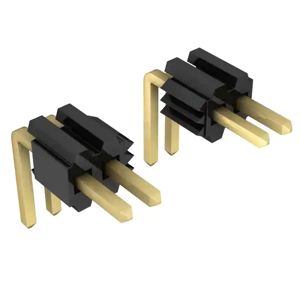

TMS-108-02-G-S-RA
Samtec Inc.

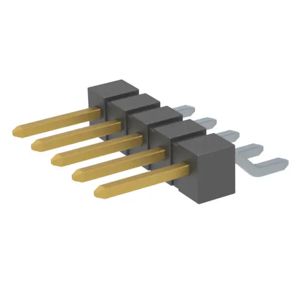

TSM-105-01-SM-SH
