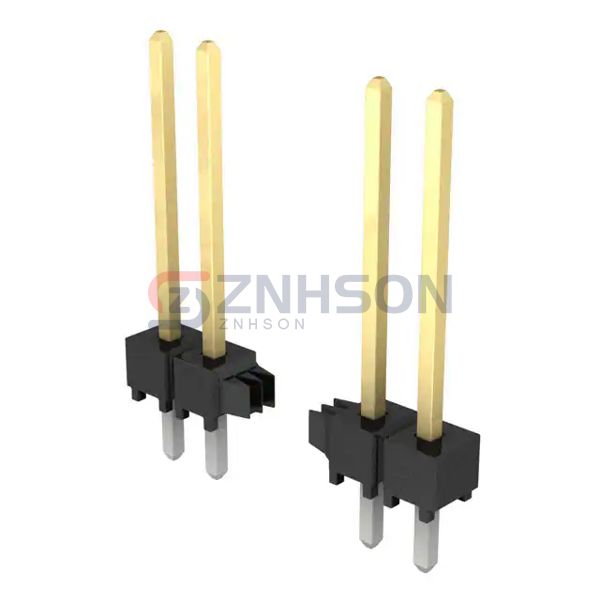

TSW-106-15-F-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 6POS 2.54MM
$0.88
Available to order
Reference Price (USD)
1+
$0.55000
10+
$0.51900
100+
$0.39790
500+
$0.34600
1,000+
$0.28545
5,000+
$0.25085
10,000+
$0.23355
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with TSW-106-15-F-S Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.520" (13.21mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
68000-217HLF
TE Connectivity AMP Connectors
292207-6
Samtec Inc.
FTS-143-01-F-S
HARTING
15110806601000
Sullins Connector Solutions

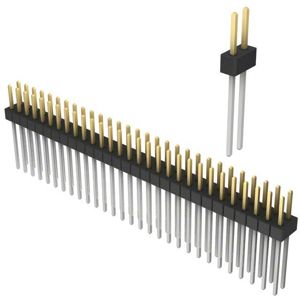

PBC29DAEN
Preci-Dip

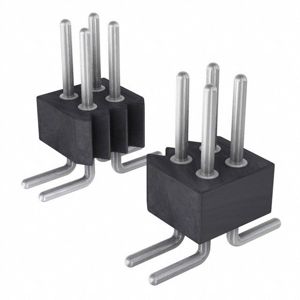

852-80-026-30-001101
Preci-Dip

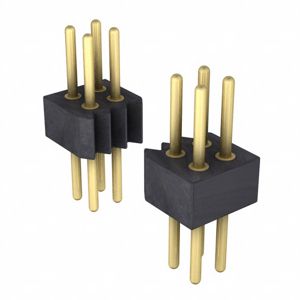

852-10-052-10-001101
