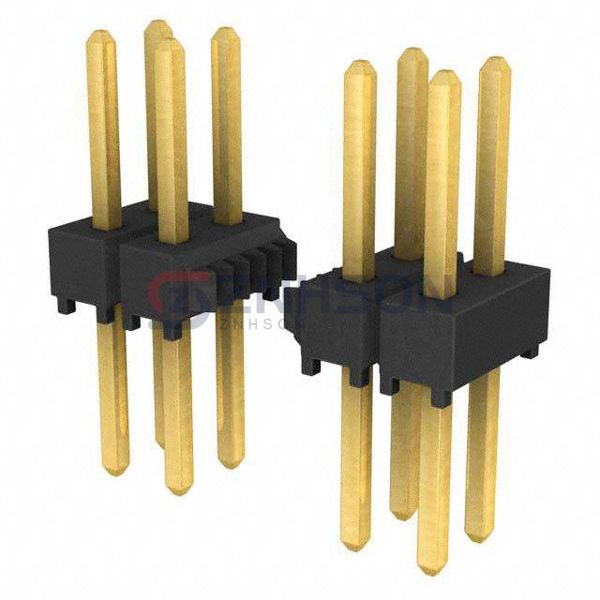

TSW-108-26-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 16POS 2.54MM
$2.33
Available to order
Reference Price (USD)
1+
$2.12000
10+
$1.92400
25+
$1.80600
50+
$1.72760
100+
$1.64910
250+
$1.49204
500+
$1.37424
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality TSW-108-26-G-D Samtec Inc. Rectangular Connectors - Headers, Male Pins, designed for reliable and secure connections in various electronic applications. These connectors feature durable construction, excellent conductivity, and easy installation, making them ideal for industrial, automotive, and consumer electronics. Whether you need robust headers or precision male pins, our products ensure optimal performance. Contact us today for a quote and let us meet your connectivity needs!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.456" (11.58mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
640503-3
Amphenol ICC (FCI)
77317-804-26LF
Amphenol ICC (FCI)
75844-156-18LF
TE Connectivity AMP Connectors
9-146305-0-22
Samtec Inc.
TSM-107-01-L-DV-011
TE Connectivity AMP Connectors
9-146277-0-35
Samtec Inc.
TFC-135-22-F-D
JST Sales America Inc.

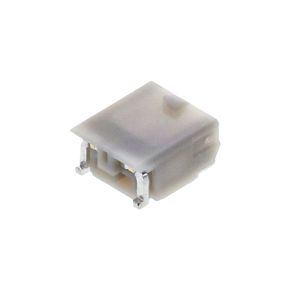

SM02B-SFKH-TF
