TSW-129-23-G-D

Samtec Inc.
TSW-129-23-G-D Preview
Samtec Inc.
CONN HEADER VERT 58POS 2.54MM
$5.67
Available to order
Reference Price (USD)
1+
$5.17000
10+
$4.96100
25+
$4.54760
50+
$4.34100
100+
$4.13420
250+
$3.61748
500+
$3.51410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 58
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.230" (5.84mm)
  • Contact Length - Post: 0.115" (2.92mm)
  • Overall Contact Length: 0.445" (11.30mm)
  • Insulation Height: 0.100" (2.54mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Gold
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Features: -
  • Operating Temperature: -55°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: -

Related Products

Sullins Connector Solutions

PEC17DBCN

Amphenol ICC (FCI)

67997-118

Sullins Connector Solutions

GBC02DAEN

Hirose Electric Co Ltd

DF13-7P-1.25H(21)

Mill-Max Manufacturing Corp.

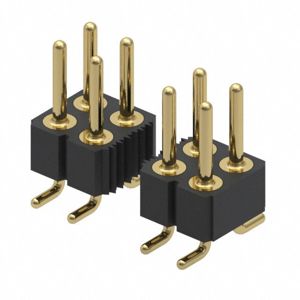

802-10-024-30-001000
