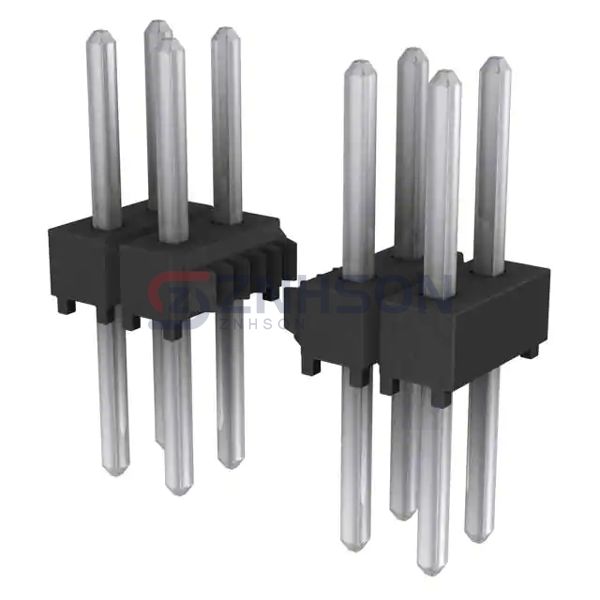

TSW-139-08-T-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 78POS 2.54MM
$4.05
Available to order
Reference Price (USD)
1+
$3.70000
10+
$3.54900
25+
$3.25360
50+
$3.10560
100+
$2.95780
250+
$2.58804
500+
$2.51410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-139-08-T-D Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 78
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-126-17-G-D
TE Connectivity AMP Connectors
640584-3
Sullins Connector Solutions
GRPB062VWQS-RC
Molex
1719720005
Molex
0877582450
Molex

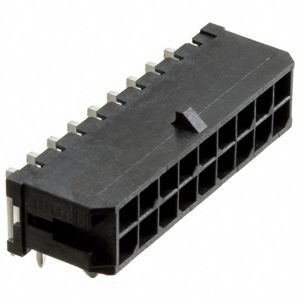

0430451409
Amphenol ICC (FCI)
77313-427-66LF
Samtec Inc.

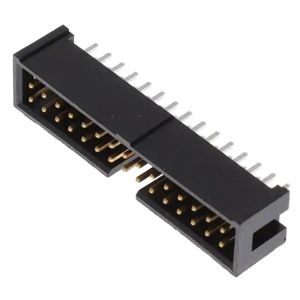

TSS-115-01-S-D
Samtec Inc.

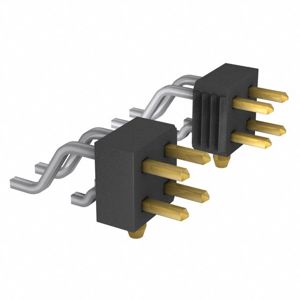

TSM-105-04-S-DH-A-P
