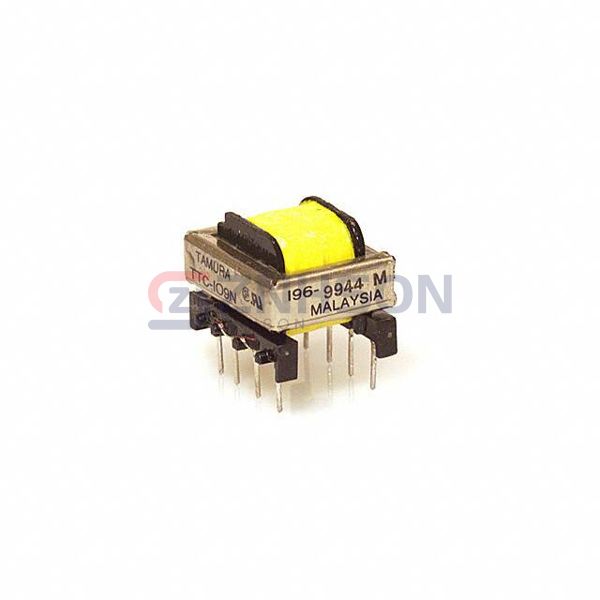

TTC-109N
Tamura
Tamura
TRANSF TELE COUP 600 OHM 90MADC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve crystal-clear audio with Tamura TTC-109N Audio Transformers, designed for versatility and top-notch performance. Perfect for use in studios, theaters, and home audio systems, these transformers ensure optimal signal transfer. Tamura is your trusted partner for high-end audio components. Reach out today for pricing and availability details.
Specifications
- Product Status: Obsolete
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 71Ohm
- DC Resistance (DCR) - Secondary: 117Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 660Hz ~ 3.5kHz
- Frequency Response: -1dB ~ 0.7dB
- Voltage - Isolation: 1500VRMS @ 1 Minute
- Insertion Loss: 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz
- Return Loss: -
- Power Level: -45dB ~ 10dB
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 66-M1988, UL1862
- Mounting Type: Through Hole
- Size / Dimension: 0.823" L x 0.752" W (20.90mm x 19.10mm)
- Height - Seated (Max): 0.630" (16.00mm)
- Termination Style: PC Pin
