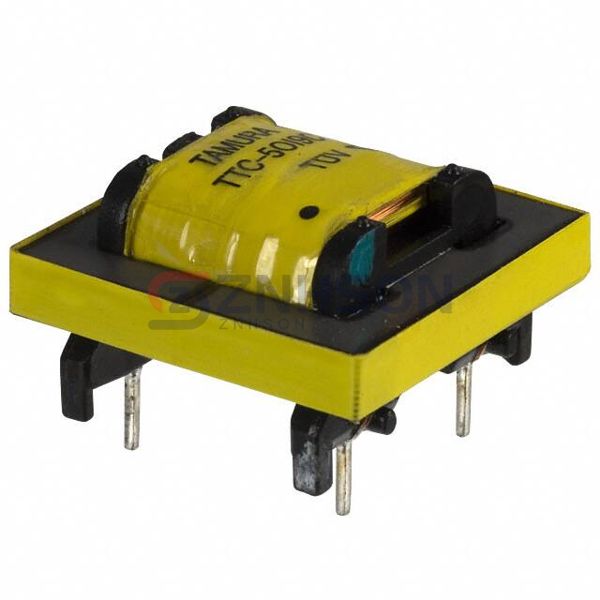

TTC-5019
Tamura
Tamura
TRANSFORMER COUPLING 600:260 OHM
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Tamura TTC-5019 Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Tamura for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Obsolete
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 260
- DC Resistance (DCR) - Primary: 170Ohm
- DC Resistance (DCR) - Secondary: 170Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 200Hz ~ 4kHz
- Frequency Response: ±2.5dB
- Voltage - Isolation: 1875VRMS @ 1 Second
- Insertion Loss: 4dB Max @ 1kHz
- Return Loss: 8dB Min @ 200Hz ~ 4kHz
- Power Level: -
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 950-95, UL1950
- Mounting Type: Through Hole
- Size / Dimension: 0.886" L x 0.909" W (22.50mm x 23.10mm)
- Height - Seated (Max): 0.543" (13.80mm)
- Termination Style: PC Pin
