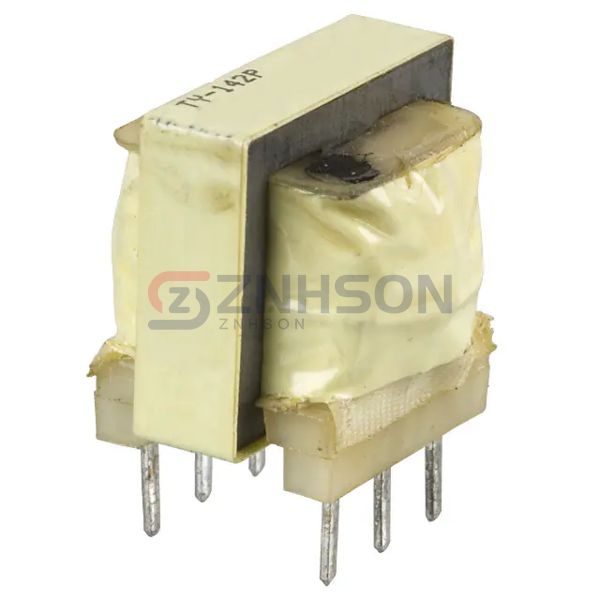

TY-142P-B
Triad Magnetics
Triad Magnetics
TRANSF 10K AUDIO CTAP/2K CTAP
$3.65
Available to order
Reference Price (USD)
1,200+
$3.25119
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your audio experience with Triad Magnetics TY-142P-B Audio Transformers, offering unmatched performance and reliability. These transformers are widely used in broadcasting, recording, and live sound applications, providing clear and consistent audio signals. Choose Triad Magnetics for components that stand the test of time. Get in touch today to learn more and place your order.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 2.24:1
- Impedance - Primary (Ohms): 10kCT
- Impedance - Secondary (Ohms): 2kCT
- DC Resistance (DCR) - Primary: 750Ohm
- DC Resistance (DCR) - Secondary: 217Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 200Hz ~ 15kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1500V
- Insertion Loss: 1.5dB @ 1kHz
- Return Loss: 26dB
- Power Level: -
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.700" W (20.62mm x 17.78mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
