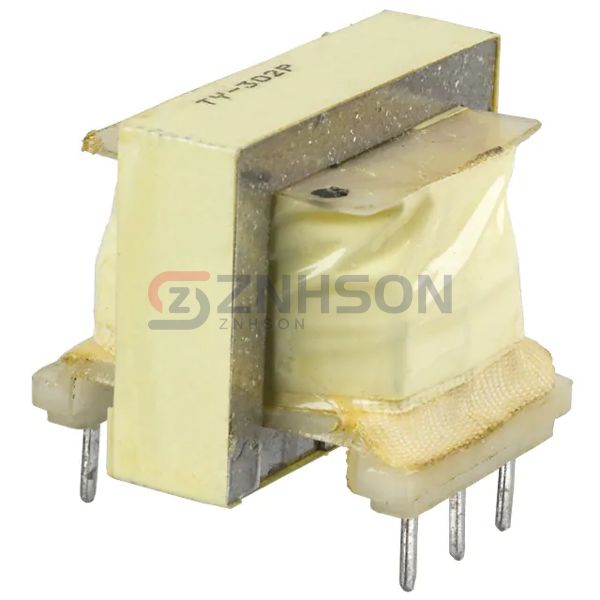

TY-302P
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM 0MA DC TEL HYBRID
$7.55
Available to order
Reference Price (USD)
1+
$7.32000
10+
$5.56500
25+
$5.41880
50+
$4.97940
100+
$4.68640
250+
$4.53996
500+
$4.39350
1,000+
$4.24705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Triad Magnetics TY-302P Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Triad Magnetics for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.47
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600/600
- DC Resistance (DCR) - Primary: 34Ohm
- DC Resistance (DCR) - Secondary: 24Ohm, 24Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: -
- Voltage - Isolation: 1500VAC
- Insertion Loss: 0.65dB Typ
- Return Loss: 32dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.040" L x 0.960" W (26.42mm x 24.38mm)
- Height - Seated (Max): 0.870" (22.10mm)
- Termination Style: PC Pin
