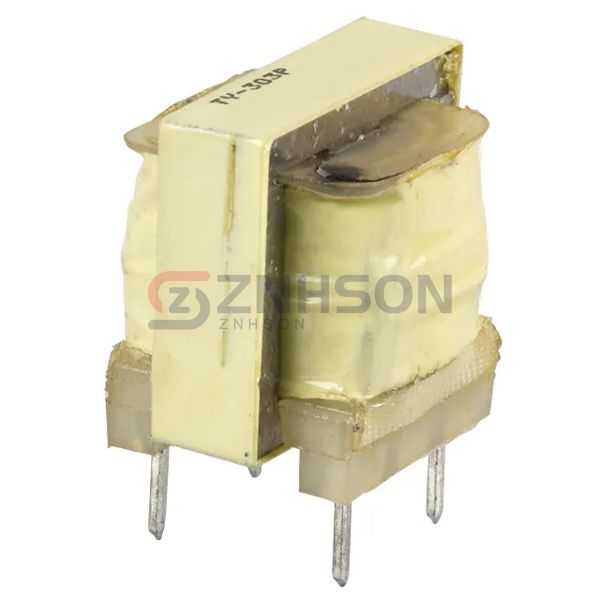

TY-303P-B
Triad Magnetics
Triad Magnetics
TRANSF 4000 OHM PRI. 0MA DC TEL
$3.50
Available to order
Reference Price (USD)
600+
$3.10575
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Triad Magnetics TY-303P-B Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Triad Magnetics for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 2.43:1
- Impedance - Primary (Ohms): 4k
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 260Ohm
- DC Resistance (DCR) - Secondary: 52Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1dB Typ
- Return Loss: 26dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.715" W (20.62mm x 18.16mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
