1750C
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER TUBE GUITAR AMP
$39.13
Available to order
Reference Price (USD)
1+
$36.47000
10+
$32.17500
25+
$31.10240
50+
$27.88500
100+
$26.81250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

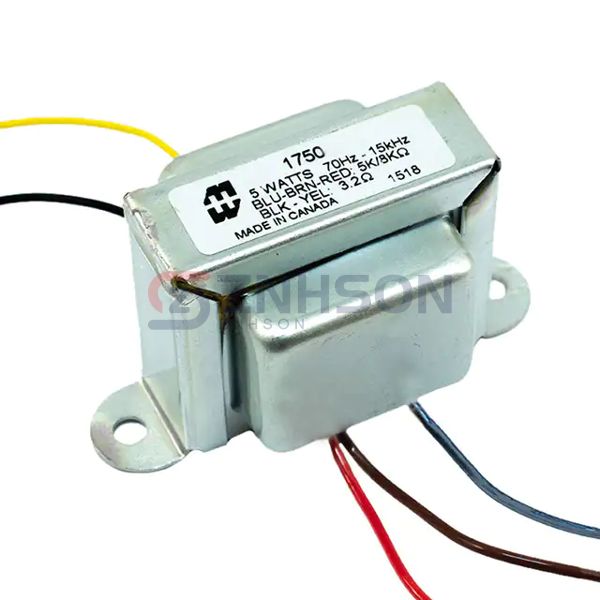

Boost your audio projects with Hammond Manufacturing 1750C Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 49.16:1
- Impedance - Primary (Ohms): 5k, 8k
- Impedance - Secondary (Ohms): 3.2
- DC Resistance (DCR) - Primary: 314.2Ohm
- DC Resistance (DCR) - Secondary: 295mOhm
- Transformer Type: Single Ended Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 70Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: -
- Insertion Loss: -
- Return Loss: -
- Power Level: 5W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 2.813" L x 1.560" W (71.45mm x 39.62mm)
- Height - Seated (Max): 1.746" (44.35mm)
- Termination Style: Wire Leads
