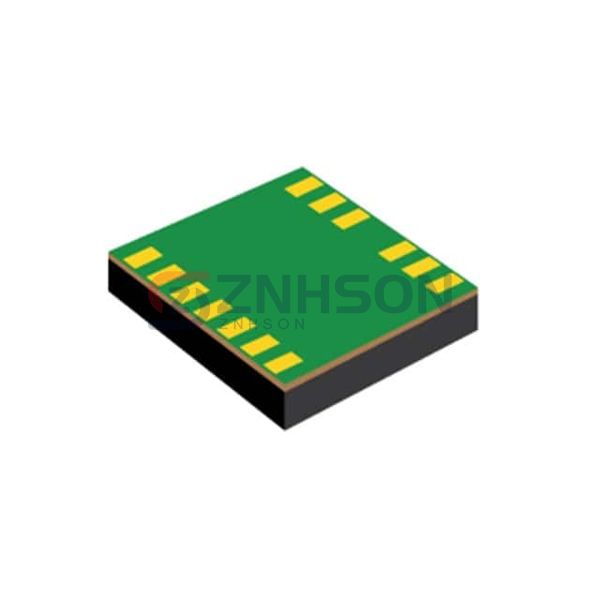

UCC20225NPLT
Texas Instruments
Texas Instruments
DGTL ISO 2.5KV GATE DRVR 13VLGA
$5.13
Available to order
Reference Price (USD)
1+
$5.13000
500+
$5.0787
1000+
$5.0274
1500+
$4.9761
2000+
$4.9248
2500+
$4.8735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Texas Instruments UCC20225NPLT Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 30ns, 30ns
- Pulse Width Distortion (Max): 6ns
- Rise / Fall Time (Typ): 6ns, 7ns
- Current - Output High, Low: 4A, 6A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 3V ~ 18V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 13-VFLGA
- Supplier Device Package: 13-VLGA (5x5)
- Approval Agency: CQC, CSA, UR, VDE
