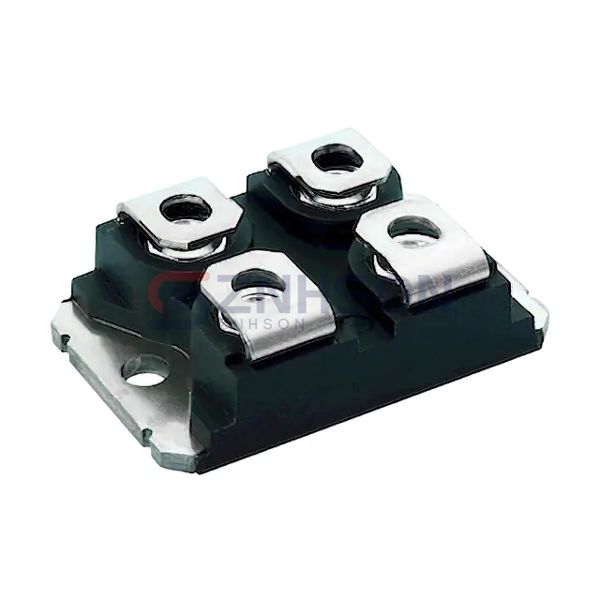

VS-GT90DA120U
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SOT-227 - SINGLE SWITCH IGBT + A
$39.14
Available to order
Reference Price (USD)
1+
$39.14000
500+
$38.7486
1000+
$38.3572
1500+
$37.9658
2000+
$37.5744
2500+
$37.183
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VS-GT90DA120U from Vishay General Semiconductor - Diodes Division sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Vishay General Semiconductor - Diodes Division for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 169 A
- Power - Max: 781 W
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 75A
- Current - Collector Cutoff (Max): 100 µA
- Input Capacitance (Cies) @ Vce: -
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227
