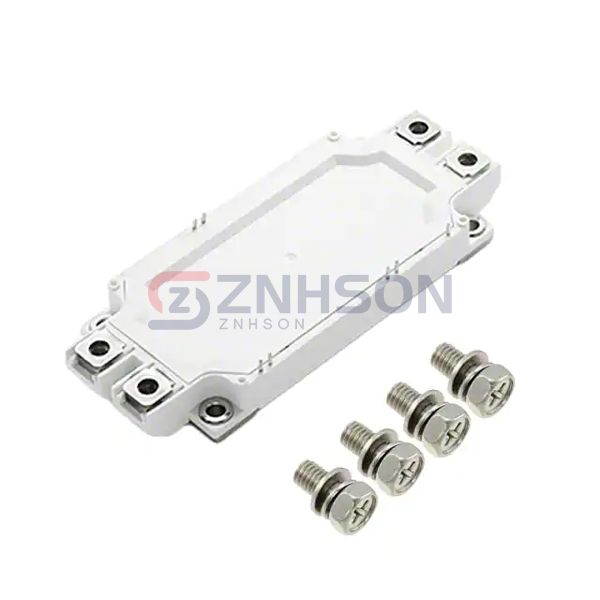

MG12600WB-BR2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 750A 2500W WB
$155.63
Available to order
Reference Price (USD)
1+
$198.65000
10+
$189.06000
25+
$182.21000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Littelfuse Inc.'s MG12600WB-BR2MM IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 750 A
- Power - Max: 2500 W
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 600A
- Current - Collector Cutoff (Max): 100 µA
- Input Capacitance (Cies) @ Vce: 60.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: WB
