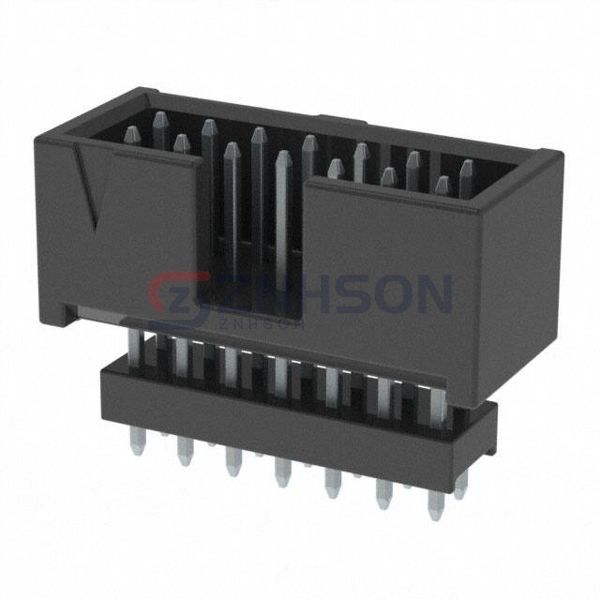

ZSS-107-01-T-D-540
Samtec Inc.
Samtec Inc.
CONN HDR .100" 14POS
$2.47
Available to order
Reference Price (USD)
1+
$2.47000
500+
$2.4453
1000+
$2.4206
1500+
$2.3959
2000+
$2.3712
2500+
$2.3465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with ZSS-107-01-T-D-540 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.540" (13.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0022045118
Amphenol ICC (FCI)
20021121-00030T1LF
Preci-Dip
351-10-141-00-016101
Samtec Inc.
TSM-116-01-L-SH-TR
TE Connectivity AMP Connectors
2-1445087-8
Sullins Connector Solutions
NREC033SABC-M30RC
Amphenol ICC (FCI)
68021-208HLF
Mill-Max Manufacturing Corp.
349-10-156-00-560000
Adam Tech

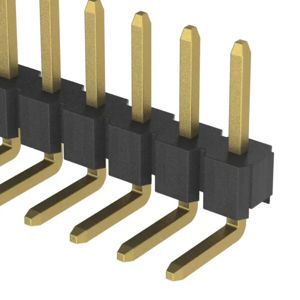

2PH1R-17-UA
