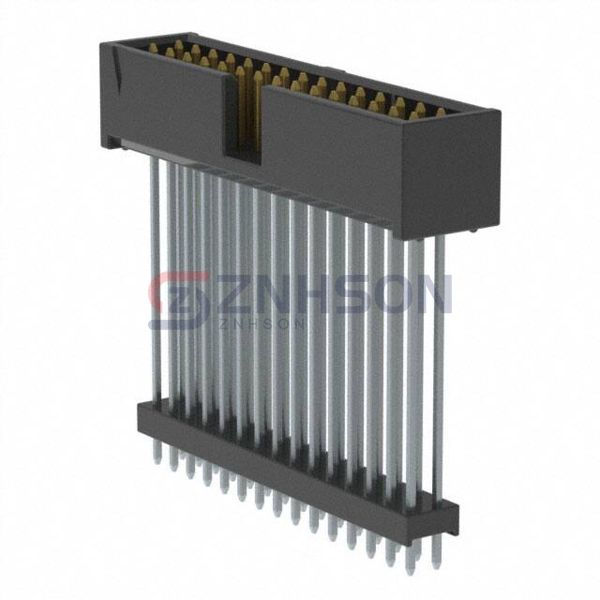

ZSS-115-09-L-D-1340

Specifications

• Product Status: Active
• Connector Type: Header, Elevated
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 30
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.250" (6.35mm)
• Contact Length - Post: 0.090" (2.29mm)
• Overall Contact Length: 1.430" (36.32mm)
• Insulation Height: 1.340" (34.04mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Polyester, Glass Filled
• Features: Keying Slot
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: -
