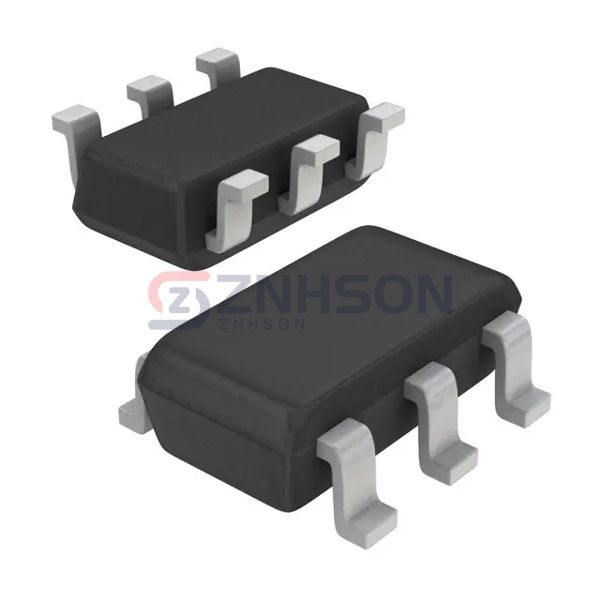

ZXMN2A01E6TA
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 2.5A SOT23-6
$0.63
Available to order
Reference Price (USD)
3,000+
$0.27623
6,000+
$0.26028
15,000+
$0.24433
30,000+
$0.23316
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover ZXMN2A01E6TA, a versatile Transistors - FETs, MOSFETs - Single solution from Diodes Incorporated, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 120mOhm @ 4A, 4.5V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 3 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 303 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 1.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-6
- Package / Case: SOT-23-6
