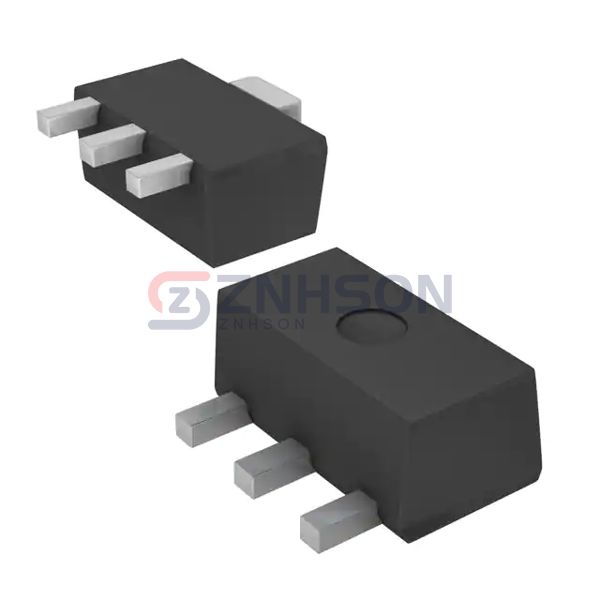

ZXMN3A01ZTA
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 2.2A SOT89
$0.51
Available to order
Reference Price (USD)
1,000+
$0.20700
2,000+
$0.19050
5,000+
$0.17950
10,000+
$0.16850
25,000+
$0.16080
50,000+
$0.16000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with ZXMN3A01ZTA by Diodes Incorporated, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, ZXMN3A01ZTA ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 2.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 120mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 186 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 970mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-89-3
- Package / Case: TO-243AA
