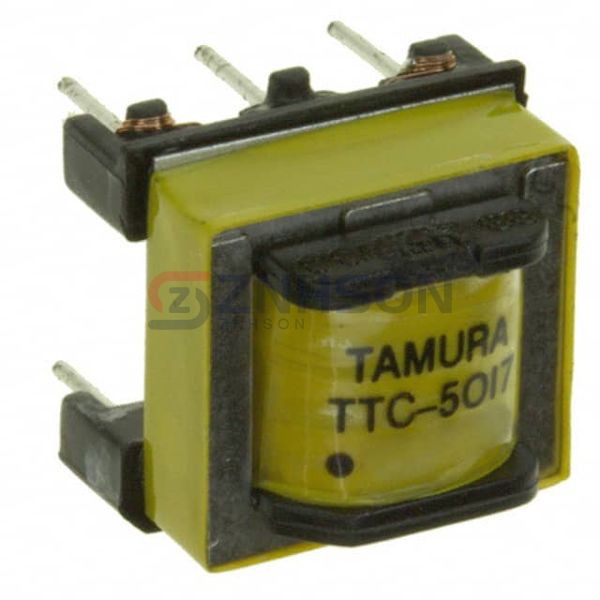

TTC-5017
Tamura
Tamura
TRANSFORMER TELECOMM 600:600 OHM
$5.62
Available to order
Reference Price (USD)
1+
$5.08000
10+
$3.85700
25+
$3.75560
50+
$3.45100
100+
$3.24800
250+
$3.14652
500+
$3.04500
1,000+
$2.94350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Tamura TTC-5017 Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Tamura for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 59Ohm
- DC Resistance (DCR) - Secondary: 59Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 200Hz ~ 4kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1875VRMS @ 1 Second
- Insertion Loss: 1.5dB Max @ 1kHz
- Return Loss: 14dB Min @ 200Hz ~ 4kHz
- Power Level: -
- Operating Temperature: -
- Approval Agency: UL60950
- Mounting Type: Through Hole
- Size / Dimension: 0.591" L x 0.571" W (15.00mm x 14.50mm)
- Height - Seated (Max): 0.472" (12.00mm)
- Termination Style: PC Pin
