107X
Hammond Manufacturing
Hammond Manufacturing

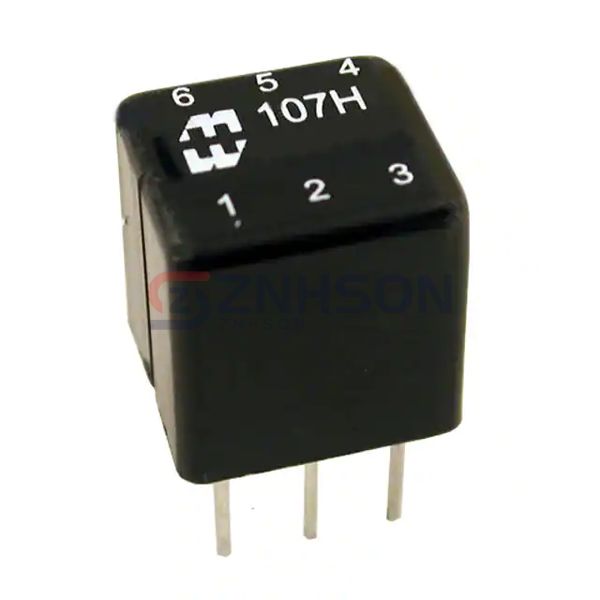

TRANSFORMER AUDIO 100KCT/1KCT
$30.70
Available to order
Reference Price (USD)
1+
$25.52000
10+
$22.51500
25+
$21.76440
50+
$19.51300
100+
$18.76250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality Hammond Manufacturing 107X Audio Transformers, designed to deliver exceptional sound clarity and performance. These transformers are perfect for audio applications, ensuring signal integrity and noise reduction. Whether you're working on professional audio equipment or consumer electronics, our Audio Transformers provide reliable performance. Contact us today for a quote and elevate your audio projects with Hammond Manufacturing excellence.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 10:1
- Impedance - Primary (Ohms): 100kCT
- Impedance - Secondary (Ohms): 1kCT
- DC Resistance (DCR) - Primary: 3.66kOhm
- DC Resistance (DCR) - Secondary: 75Ohm
- Transformer Type: Miniature Epoxy Potted
- Frequency Range: 300Hz ~ 50kHz
- Frequency Response: ±1.5dB
- Voltage - Isolation: 500Vrms
- Insertion Loss: -
- Return Loss: -
- Power Level: 150mW
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.630" L x 0.586" W (16.00mm x 14.88mm)
- Height - Seated (Max): 0.630" (16.00mm)
- Termination Style: PC Pin
